Custom columns in Management Console
You can add custom columns to the Devices table. Custom columns with their values are visible to all users.
Custom columns support text values only (no date or numeric functions are available for filtering). We strongly discourage storing sensitive information like encryption keys or passwords in custom columns.
Permissions required
- Actions related to custom columns require SuperUser permissions (adding, renaming and removing columns as well as adding data to them)
- Only custom columns created by users from your company can be renamed or removed (you will not have permission to edit columns created by other companies)
- Custom columns can only be added to views if these are internal (created by users from your company or a parent company)
Key
The following icons indicate availability:
Key | Status | Description |
---|---|---|
Available | Is available for all | |
Available if additional criteria met | Is available for all, so long as an additional criteria is met (see * for additional information) | |
Not Available | Is not available |
For distributor
Action | Columns created internally | Columns created by resellers and end-customers |
---|---|---|
View | ||
Rename & remove | ||
Add to view | ||
Add data |
For reseller
Action | Columns created internally | Columns created by distributor | Columns created by end-customers |
---|---|---|---|
View | |||
Rename & remove | |||
Add to view | |||
Add data |
For end-customer
Action | Columns created internally | Columns created by distributor and reseller |
---|---|---|
View | ||
Rename & remove | ||
Add to view | ||
Add data |
Columns to display
To add columns to the view, use the Columns option on the toolbar.
When no device or domain is selected, the Columns option is found on the toolbar.

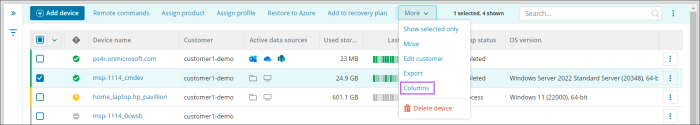

However, when a device or domain is selected, the Columns option can be found in the More dropdown.
- Once clicked, the Manage table columns window is shown
- Select or deselect the columns required
- Save the changes made
There is no limit to the number of columns that can be added, you can see the number of columns selected at the top of the window
In this window, you can also Add a custom column, reset columns, reset the column width and filter to show only the columns currently selected. You can also change the sorting method from column name to shortcode. For full details on column codes, see Expressions for advanced filter in Management Console.
Adding custom columns
- Log in to the Console under a SuperUser account
- Click Columns > Add column
- Enter a unique name to the column
- Click Add
Each custom column acquires its unique shortcode, so you can easily identify it in the future.
Adding data to custom columns
You can add data to columns created by users from your company and parent companies/groups (if applicable).
- Add the column to your view following these steps
- Point the cursor to the cell you want to update and click Enter Value
- Enter your text
- Save the changes
Managing custom columns
- Log in to the Console under a SuperUser account
- Open the Columns window and find custom column by scrolling or using the search function
- Click the Edit or Remove icons next to the column you want to change
- Editing allows you to change the custom column Name only. If deleting, you must confirm deletion:
Columns created at a parent level to where you are logged in will not be editable or deletable. The Edit and Remove icons will be replaced by a padlock.
