Manage Microsoft 365 domains

Searching and Filtering

Users of all roles can view Microsoft 365 domains present in the Management Console. They appear next to regular Backup Manager devices in Backup > Dashboard.

There are several ways to display only Microsoft 365 domains:

  1. Widgets
  2. Searching
  3. Filtering

Widgets

To display only Microsoft 365 devices using the widgets:

  1. Expand the widgets at the top of the Dashboard
  2. Click Microsoft 365 domains on the Microsoft 365 widget

  3. Click on a domain name to view the Domain's property tabs

The list of devices will automatically update to display only Microsoft 365 domains belonging to the customer selected.

Searching

To search for Microsoft 365 domains:

  1. Use the Search bar to the top right of the devices list
  2. Enable Advanced searching by clicking the toggle

  3. Use the Type shortcode of AT and the value of 2 to search for devices with the Account Type of Microsoft 365

    Full details on Advanced searching and the syntax and column codes to use can be found on Searching in Management Console

  4. Hit Enter
  5. Click on a domain name to view the Domain's property tabs

Filtering

To filter for Microsoft 365 domains:

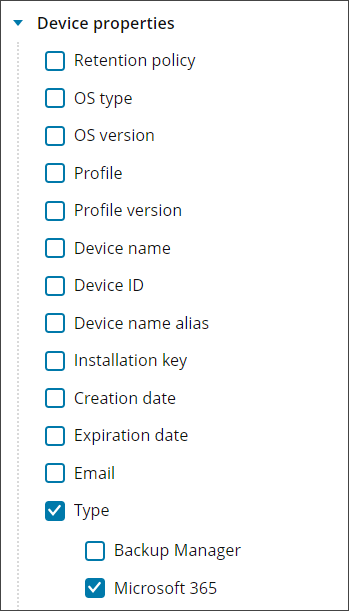

  1. Use the Filter panel to the left of the devices list, this can be expanded or collapsed by clicking the two arrows (>>/<<)
  2. Under the Device Properties section, select the type filter
  3. Tick Microsoft 365
  4. The devices list will automatically update to display the list of devices meeting this criteria
  5. Click on a domain name to view the Domain's property tabs

For full details on filtering, see the Filtering Devices in Management Console page for full details.

Export Protected Users

You can export a list of protected users from the Management Console to a spreadsheet in either .xlsx or .csv file formats.

Export files created by the Console contain all the data that is currently displayed in the protected users table. If the data spans across multiple pages, all the pages are exported.

  1. From the protected users tab apply any filters or searches to limit the list of users displayed

    For example using the User Type filter to show only Shared mailboxes

  2. Click Export from the Toolbar
  3. Select the file format from:
    • XLSX
    • CSV
  4. Click Export
  5. The report will then be generated and downloaded

Manage backup selection

When looking at the domains properties, select either the Exchange & OneDrive, SharePoint or Teams tab to view all mailboxes, accounts or sites present in the domain.

Selecting a tab where no data source has been configured for backup will resent you with the option of adding a new data source

Exchange & OneDrive

You can also Add new users, sites or teams to backup automatically using the toggle switches at the top right corner of the tab;

Toggle State Result
On newly added users/sites/teams will be added to the backup selection automatically
Off newly added users/sites/teams will appear in the list but will not added to the backup selection

You can filter the displayed list by using the Filters on the left of the display, filtering on the Mailbox Type of Regular mailbox or Shared mailbox, User Status of Active or Deleted, Microsoft 365 license Licensed or Unlicensed and Backup Protected Users or Unprotected users.

Unlicensed users will show in the list as greyed out. This is to show which mailboxes or accounts cannot be selected for backup due to not being correctly licensed.

SharePoint

You can also Add new users, sites or teams to backup automatically using the toggle switches at the top right corner of the tab;

Toggle State Result
On newly added users/sites/teams will be added to the backup selection automatically
Off newly added users/sites/teams will appear in the list but will not added to the backup selection

You can filter the displayed list by using the Filters on the left of the display, filtering on the Site Status of Active or Deleted and Backup Protected or Unprotected sites.

Teams

You can also Add new users, sites or teams to backup automatically using the toggle switches at the top right corner of the tab;

Toggle State Result
On newly added users/sites/teams will be added to the backup selection automatically
Off newly added users/sites/teams will appear in the list but will not added to the backup selection

You can filter the displayed list by using the Filters on the left of the display, filtering on the Teams status or backup data.

Add data to Backup

In here, you can add new accounts or sites for backup by ticking the ones not currently backed up. You may look for the specific account using the search bar and filter the output using the left hand tool bar.

You may also enable or disable 'Automatically add new accounts to backup/Automatically add new sites to backup' by toggling the on/off slider.

After making any changes, you must click Save at the bottom of this dialog box or changes will be lost.

Delete Backups

This is only available to Management Console users with Security Officer permissions, all other users will not see this option.

You can delete backups made by:

  1. Open the domain properties
  2. Search for the user, account or site you wish to remove
  3. On the Exchange & OneDrive tab, click the three vertical dots to open the Action menu
    1. In the action menu, select one of the available options:

      • Delete all backup history
      • Delete Exchange backup history
      • Delete OneDrive backup history
  4. Or

  5. On the Teams and SharePoint tabs, click the trash can icon towards the right hand side of the screen

  6. Doing this will remove the account from the backup schedule and will remove all backup history on the device for this user.

  7. Confirm that you wish to proceed with deletion

  8. Save the changes made before closing the Microsoft 365 domain properties

Deleting data can take up to 30 days.

It will not be possible to recover previously backed up data from any user, account or site which has since been removed from the N-able Cloud

View backup and restore job queue

To view the current backup and restore sessions that are in progress, these can be found in the Backup and Restore Jobs tab. The tab itself will also indicate how many jobs are active by showing a badge in the tab header. Beneath the progress bar you can also see the number of scanned items, processed items and size of the backup.

Backup jobs cannot be canceled but restore jobs can by clicking the cancel button in the Actions column.

Actions for domains

The action menu for Microsoft 365 domains can be accessed in a number of different ways:

  1. On the BackupDashboard, right click the domain to view the action menu

  2. On the BackupDashboard, scroll to the far right-hand side of the devices list and click the three vertical dots to view the action menu

  3. Click the Domain name to open the domain overview and use the Back up and Restore menus in the top right corner

The action menus for Microsoft 365 domains have up to 8 items depending on services configured for the domain:

  • Back up all now (initiates an unscheduled backup for all services)
  • Back up Exchange now (initiates an unscheduled backup for Exchange)
  • Back up OneDrive now (initiates an unscheduled backup for OneDrive)
  • Back up SharePoint now (initiates an unscheduled backup for SharePoint)
  • Back up Teams now (initiates an unscheduled backup of Teams)
  • Restore Exchange (lets you restore selected Exchange items)
  • Restore OneDrive (lets you restore selected OneDrive items)
  • Restore SharePoint (lets you restore selected SharePoint items)
  • Restore Teams (lets you restore selected Teams items)
  • Delete domain (the domain is deleted from the Console and all its backup data is cleared from the N-able cloud with no possibility of recovery)
